CO2 System for Planted Tanks: A Complete Setup Guide

Anyone who has moved from a few Anubias and Java Fern to a proper carpet of Monte Carlo or Hemianthus knows the moment CO2 stops being optional. Plants pull carbon from the water column, and without supplementing it, growth stalls no matter how good your light or dosing is. This guide walks through building a CO2 system for a planted tank in a Brisbane home, from the cylinder to the diffuser, using gear we actually stock and sell out of our Brisbane shop.

Table of Contents

• Why Planted Tanks Need CO2
• The Core Components
• Choosing a Regulator and Solenoid
• Diffuser Types Compared
• Diffuser Placement and Flow
• How Much CO2 for a Planted Aquarium
• Good, Better, Best Setups
• FAQ

Why Planted Tanks Need CO2

Fish tanks without added CO2 usually sit around 2 to 5 ppm dissolved carbon dioxide, mostly from respiration overnight. That is fine for low light setups with hardy plants like Anubias, Java Fern and Crypts. But if you are running high output LED lighting over a scape with carpeting plants or red stems, you need to push CO2 up to 20 to 30 ppm during the photoperiod to avoid stunted growth, melting stems and algae taking over the tank.

This is the trade off with planted tanks. More light demands more CO2 and more nutrients. Skip the CO2 and add strong light anyway, and you get algae, not a carpet.

The Core Components

A pressurised CO2 system for a planted aquarium has a few non negotiable parts:

• CO2 cylinder, either a refillable steel bottle or a disposable cartridge system.
• Regulator to step the cylinder pressure down to a usable working pressure.
• Solenoid valve so the CO2 can be switched on and off automatically with a timer.
• Bubble counter to visually count bubbles per second going into the tank.
• Diffuser or reactor to dissolve the CO2 into the water column efficiently.
• Drop checker or pH monitoring to confirm you are hitting a safe, effective CO2 level.

For smaller tanks, a compact kit like the Dymax 95g CO2 Kit bundles most of this into one unit and suits nano to 60L setups without needing a full size cylinder in the cabinet.

Choosing a Regulator and Solenoid

The regulator is where most beginners either overspend or underspend. A cheap regulator with no needle valve is hard to fine tune, and you end up with either barely any bubbles or a runaway stream. Look for a regulator with a proper needle valve for fine adjustment, plus a solenoid so you can wire it into a timer or controller and have CO2 automatically cut off overnight when plants are not photosynthesising and fish are more sensitive to low oxygen and low pH swings.

Running CO2 continuously wastes gas and risks crashing your pH while fish sleep. A basic mechanical timer works, but if you are already running lighting on a controller, pairing the solenoid to the same schedule keeps CO2 and light in sync, usually starting an hour or two before lights on and cutting off an hour before lights off.

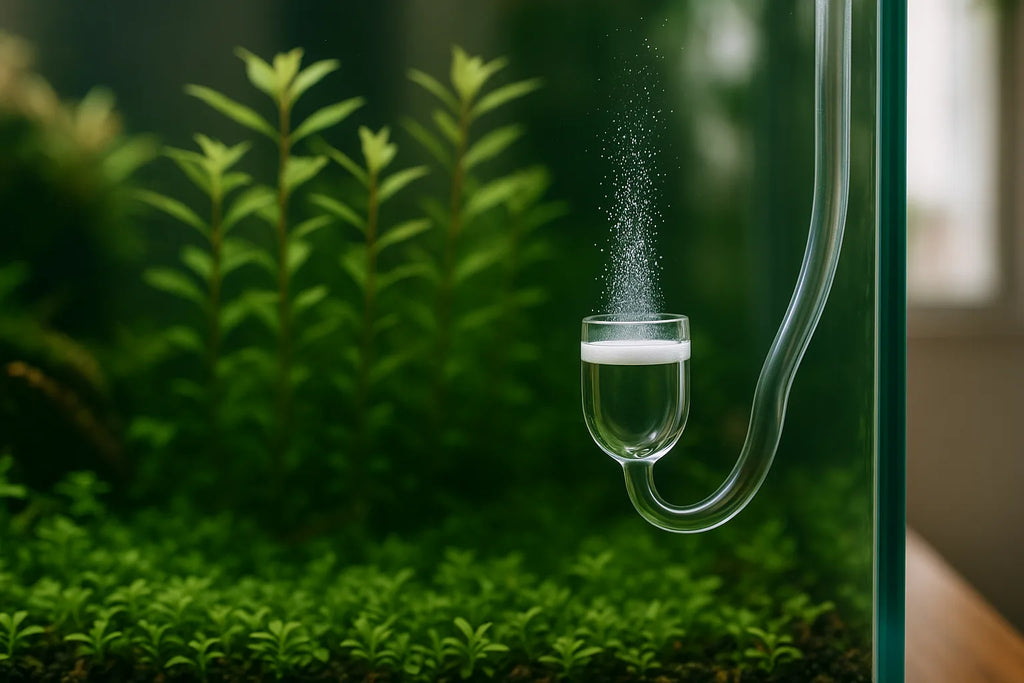

Diffuser Types Compared

Once CO2 is flowing, how you get it into solution matters as much as how much you are dosing. A poor diffuser wastes gas as bubbles escape to the surface before dissolving.

Diffuser Placement and Flow

Placement makes or breaks dissolution efficiency. Bubbles need contact time with the water before they reach the surface. A few rules that hold up in practice:

• Position the diffuser in a spot with strong flow from your filter outflow so bubbles get broken up and distributed rather than rising in a straight column.
• Avoid placing diffusers directly under floating plants or near the surface, since bubbles will escape faster.
• In taller tanks, a reactor style unit like the Stream Pipe or an external inline reactor plumbed into the filter line dissolves gas more completely than a simple diffuser stone.
• Check your drop checker daily for the first week after any change in flow, bubble rate or plant load.

How Much CO2 for a Planted Aquarium

The target for most planted tanks is 20 to 30 ppm dissolved CO2 during the photoperiod. A drop checker using a reference solution and pH indicator will turn lime green at the ideal range, blue means too little, yellow means too much and risks stressing fish, particularly shrimp.

Start with a bubble count of roughly 1 bubble per second for every 40 to 50 litres as a rough baseline, then adjust over several days while watching both the drop checker colour and fish behaviour. Rasboras and tetras gasping at the surface is a sign you have pushed CO2 too far, too fast. Shrimp are especially sensitive, so if you are running a shrimp colony alongside plants, err on the lower end and increase gradually.

Products like Colour Changing CO2 Media from Reef Pure RO Systems can be used in a drop checker to give a visual read on your CO2 levels without needing a separate pH probe.

Good, Better, Best Setups

Good: Budget Nano Setup

A disposable cartridge kit or the Dymax 95g CO2 Kit paired with the Aquario Neo Diffuser Special. Suits tanks under 60L, simple to run, no need for a bulky cylinder in the cabinet. Around 200 AUD to get started.

Better: Mid Size Planted Tank

A refillable steel cylinder with a proper regulator and solenoid, run through the Chihiros Glass Lily Poppy Type Outflow for even distribution. Suits tanks from 60L to 200L and gives you finer control over bubble rate and automation via timer.

Best: ADA Style Aquascape

Full pressurised system with solenoid on a controller schedule, DOOA Stream Pipe for reactor style dissolution in larger volumes, and a dedicated drop checker monitored daily. This setup suits serious aquascapers running dense carpets and demanding stem plants where consistency matters more than convenience.

For any of these tiers, browse our ADA collection and planted tank range for compatible gear, or check aquascaping tools for trimming and placement accessories once your CO2 is dialled in.

FAQ

Do I need CO2 for a low light planted tank?

Not necessarily. Hardy plants like Anubias, Java Fern, Crypts and Vallisneria will grow under moderate light without added CO2. It becomes necessary once you introduce high output lighting or demanding carpeting and stem plants.

Can I run CO2 overnight?

It is not recommended. Plants do not use CO2 without light, and running it continuously wastes gas while risking a pH crash that stresses fish and shrimp. A solenoid on a timer solves this by cutting CO2 an hour or so before lights off.

What is the difference between a diffuser and a reactor?

A diffuser releases fine bubbles directly into the tank and relies on flow to dissolve them. A reactor forces water and CO2 through a chamber for more complete dissolution before it enters the tank, which is more efficient in larger volumes.

How do I know if I am dosing too much CO2?

Watch your fish. Gasping at the surface, lethargy or shrimp climbing out of the water are signs of excess CO2. Back off the bubble rate and increase surface agitation temporarily if you see these signs.

Is a drop checker necessary?

It is the simplest way to visually confirm your CO2 level is in a safe, effective range without investing in a pH controller. Combined with observing plant growth and fish behaviour, it gives a reliable day to day check.

Prices mentioned in this guide are accurate at the time of publishing and are subject to change. Please check the relevant product page on our site for the current price before purchasing.
